Middle Size WIND-TIG TIG Welding Machine for Low Duty Motor Stator Manufacturing Line

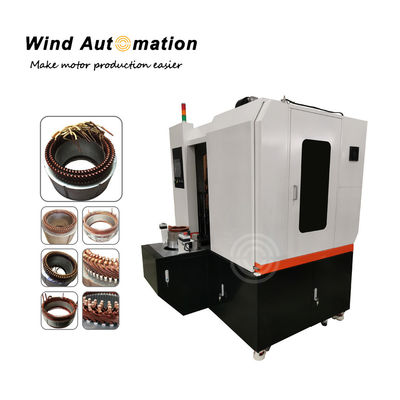

Large Image : Middle Size WIND-TIG TIG Welding Machine for Low Duty Motor Stator Manufacturing Line

Product Details:

Contact Now

Middle Size WIND-TIG TIG Welding Machine for Low Duty Motor Stator Manufacturing Line

Description

Model NO.:	WIND-TIG	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Low Duty Motor Stator TIG Welding Machine

This TIG welding machine is designed for weld lead wires of stator. Machine will auto perform clamping, welding, loosening, rotating process. Indexing system and Panasonic argon arc welding machine ensures the high quality of each single weld.

(1)Specifications

Power Supply	AC 380V 50Hz
Air Pressure Supply	≥0.5MPa
Productivity	2s/slot
Indexing method	Servo
Weight	800KG
Dimension	1400x750x1950mm

(2)Application
This machine is suitable for hybrid car motor, hybrid automobile car motor or hybrid vehicle motor stators or drive motor.

(3) Features
Fully automatic welding cycle after loading of the stator
Temperature control system monitors the temperature of the joint during welding
Automatic servo controlled indexing
Water cooling system prevents overheating
High quality level of the wire fusing process
Can be customized accordingly
Memory storage of welding and stator's parameters
User-friendly operator interface via touch screen LCD display

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
Panasonic argon arc welding machine
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components

Middle Size WIND-TIG TIG Welding Machine for Low Duty Motor Stator Manufacturing Line 1
