Alternator Stator Insulation Paper Inserting Machine

Large Image : Alternator Stator Insulation Paper Inserting Machine

Product Details:

Contact Now

Alternator Stator Insulation Paper Inserting Machine

Description

Model NO.:	WIND	Customized Service:	Provided
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

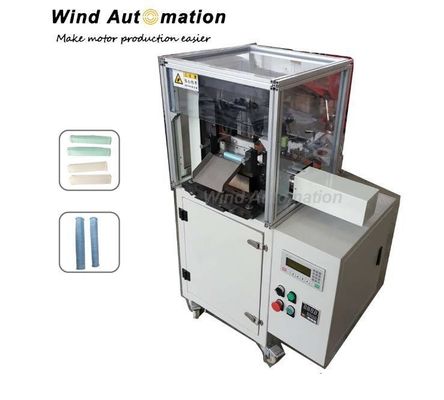

Alternator Stator Insulation Paper Inserting Machine

This paper inserting machine covers a stack length range within 20-42mm. No need to change tooling for different stack length, but mechanical adjustment. It is controlled by PLC, while paper feeding and indexing are controlled by stepping motor. All the parameters can be displayed and programmed on the touch screen.

(1)Features
Fast tooling change design within 20 min
Easy loading and unloading
Precision performance of paper inserting
Fully programmable operation
Parameter adjustable according to different stators
Operation height is 1050mm

Applied as a stand-alone machine or integrated into a production line

(2)Machine configuration

Item	Brand
PLC	MITSUBISHI
Touch Screen	MITSUBISHI
Servo motor	MITSUBISHI
Electrical components	Schneider
Pneumatic Components	Festo & Airtac

(3) Operation process
Load stator and press start button
Unload stator and transfer stator to next station
