Generator Alternator Stator Slot Insulation Paper Inserter

Large Image : Generator Alternator Stator Slot Insulation Paper Inserter

Product Details:

Contact Now

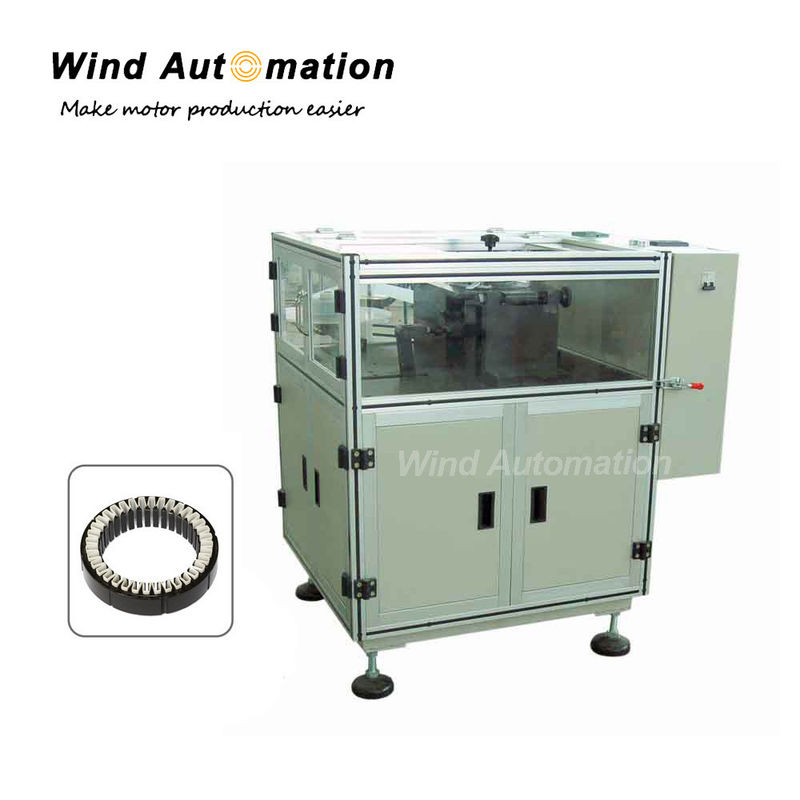

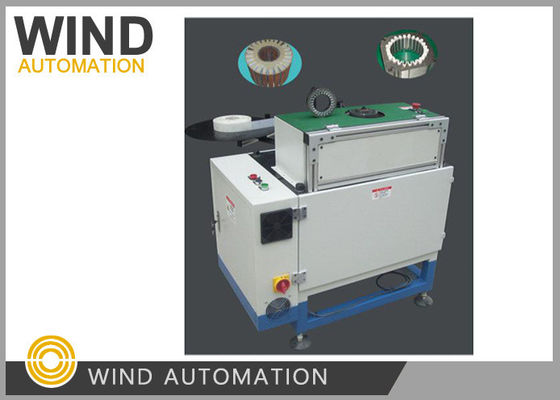

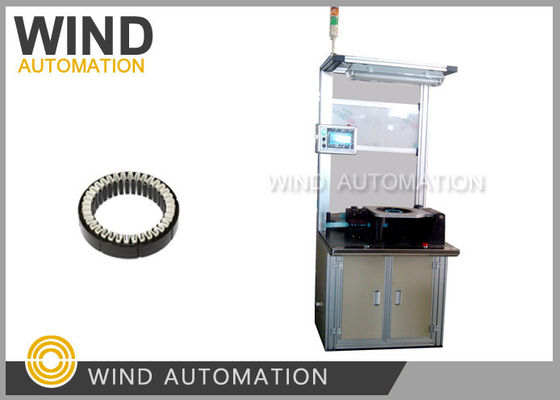

Generator Alternator Stator Slot Insulation Paper Inserter

Description

Model NO.:	WIND-100-SI	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

Generator Alternator Stator Slot Insulation Paper Inserter

(1) Specifications

Stator stack length	10mm-100mm
Max stator OD	200mm
Stator height	15mm- 90mm
Height of edge folded insolation	2.5mm-5mm
Max insulation paper's thickness	0.3mm
Feeding length	12mm-45mm
Tack time	0.5 to 0.7s/slot
Input Power Source	380V/50Hz
Power	0.75KW
Machine productivity	around 1500pcs/8hours
Dimension	950mm x 600mm x1000mm
Weight	150KG

(2) Application

This insulation paper inserting machine is suitable for small and medium-sized three phase motor, generator, alternator motor.

(3) Features
This paper inserting machine can be customized accordingly.
Parameter of different models can be edited, modified and displayed.
Easy for operation.
After cutting, paper edge should be neat, no damage, free of burr.
After paper inserted, no deformation of stator and lamination.
The whole set of tooling can be changed as to suite different stators.
If paper jams occur, this paper inserting machine will automatically stop and alarm.
Edge folded: according to customer's requirement.
This machine is suitable for Polyester Film insulation paper roll material with thickness 0.25mm and fixed width(width is decided by customer)

(4) Competitive advantages
Efficiency 0.5 to 0.7 second per slot
Save labor cost comparing to paper forming and manual inserting production process
The edge folding length and insulation paper length can be adjusted
Convenient and easy for different slot number stator production and changing tooling.
