Alternator Stator Wave Winding Machine

Large Image : Alternator Stator Wave Winding Machine

Product Details:

Contact Now

Alternator Stator Wave Winding Machine

Description

Model NO.:	WIND-AGW-1	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

Alternator Stator Wave Winding Machine

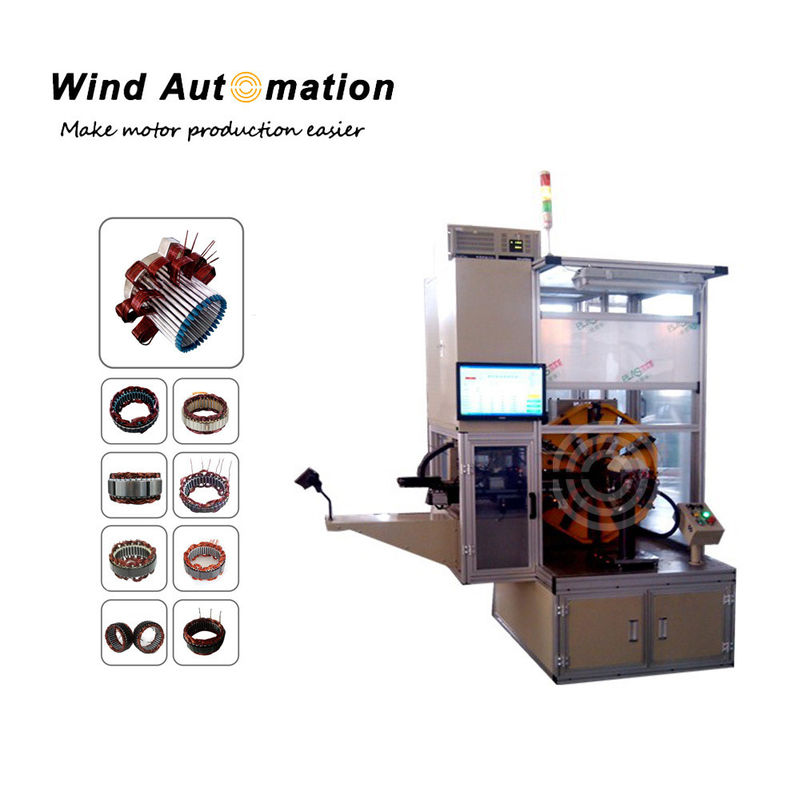

This wave winding machine is controlled by control computer(brand Advantech) instead of PLC. Separate winding for odd layer and even layer winding. The wire feeding length can be set accordingly. The locking mechanism of winding form is a quick disassemble device, easy to operate. The screen can monitor all operation state of wave winding machine.

(1)Features
Winding cycle is 46-60s/pc
Automatically wire feeding
Easy loading and unloading
Fast tooling change design within 20 min.
Precision performance of winding
Fully programmable operation
Parameter adjustable according to different stators

Applied as a stand-alone machine or integrated into a production line

(2)Machine configuration

Item	Brand
Guideway	ABBA/TCP
Sensor	Sick
Servo motor	MITSUBISHI, 6sets
Electrical components	Schneider
Pneumatic Components	Festo
LCD	Advantech

(3) Operation process

Tread wire

Adjust winding form as per required winding parameters.

Press start button, machine will automatically do winding process.

Unload winding form and transfer it to coil inserting station.
