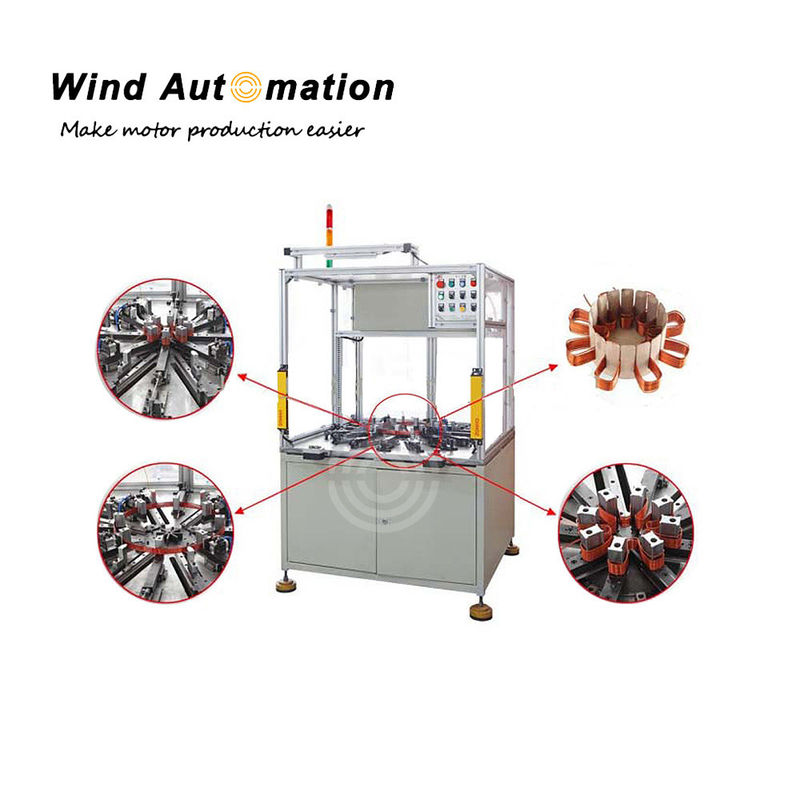

Stator Wave Winding Line for Alternator Generator

Large Image : Stator Wave Winding Line for Alternator Generator

Product Details:

Contact Now

Stator Wave Winding Line for Alternator Generator

Description

Model NO.:	WIND-RX-C	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

Stator Wave Winding Line For Alternator Generator

This wave winding line is suitable for alternator, or generator stator to do coil winding. Servo motor control wire arraying and winding, pneumatically shaped to plum blossom, double work stations automatic position changing, servo automatic wire embedding, automatically put into slot cover

(1)Specifications

Power Supply Voltage	380V/220V±10% 50Hz
Air source Pressure	0.5~0.7Mpa
Machine Power	about 8 kW
Wire Winding Speed	10-120r/min
Stator Slot Number	36/48
Wire Diameter:	0.8-1.6mm
Merging Winding Wire Number	1-2

(3) Features
Servo motor control wire arraying and winding, pneumatically shaped to plum blossom, double work
stations automatic position changing, servo automatic wire embedding, automatically put into slot cover
One work station for wave shape winding and push into wire embedding mould, another station for wire
Embedding and put into slot cover, put paper inserted stator on the station manually, repeating operation
PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method
High automation and efficiency.

(2) Application
Suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding and putting into winding transfer former automatically.
