Generator Motor Stator Wave Winding Machine Coil Widner

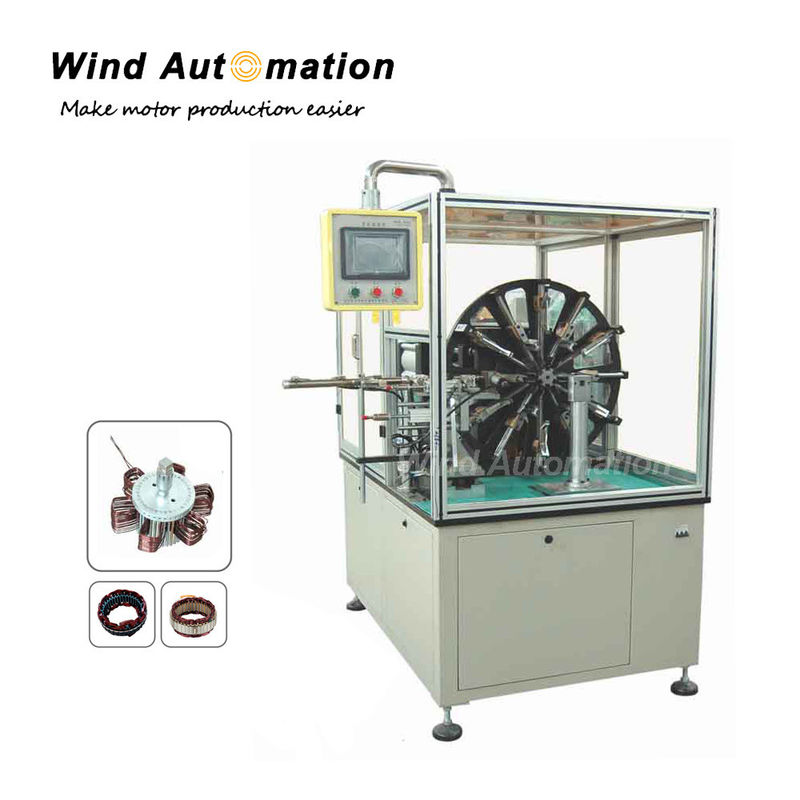

Large Image : Generator Motor Stator Wave Winding Machine Coil Widner

Product Details:

Contact Now

Generator Motor Stator Wave Winding Machine Coil Widner

Description

Model NO.:	WIND-BL-1	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Generator Motor Stator Wave Winding Machine Coil Widner

This wave winding machine is suitable for alternator, or generator stator to do coil winding. It will automatically wind the coil into the tooling. In normal case, a winding inserting machine will be needed. Otherwise, the coil inserting process should be done manually.

(1)Specifications

Stator ID	70~150 mm
Stack length	5~100mm
Wire range	0.5~3mm
Power	3KW
Machine dimension	760x1250x2350mm
Power supply	AC 380
Air pressure	0.5~0.7MPa

(2) Application
Suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding and putting into winding transfer former automatically.
