Automatic Hairpin Coil Winder for Generator Stator

Large Image : Automatic Hairpin Coil Winder for Generator Stator

Product Details:

Contact Now

Automatic Hairpin Coil Winder for Generator Stator

Description

Model NO.:	WIND-AWF-F	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

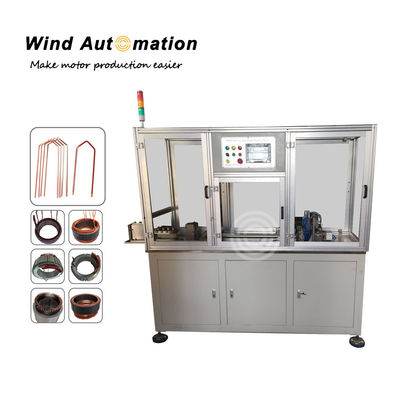

Automatic Hairpin Coil Winder for Generator Stator

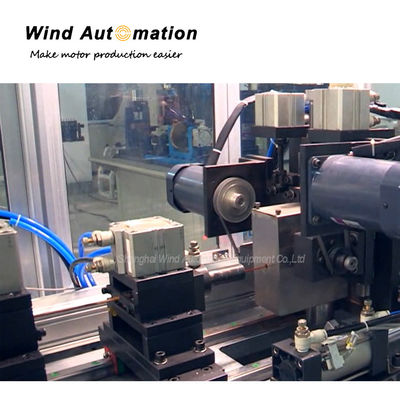

This hairpin winder is suitable for generator stators with flat wire. Machine can do wire paint peeling, wire feeding, wire bending, wire forming automatically. The working productivity is about 4s/pc.

(1) Application

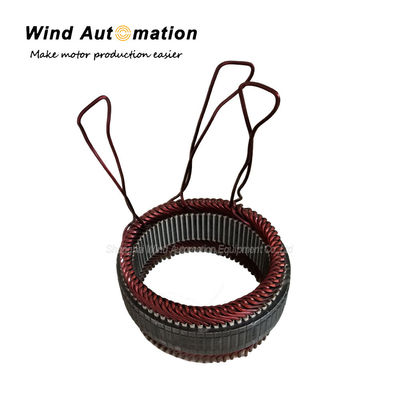

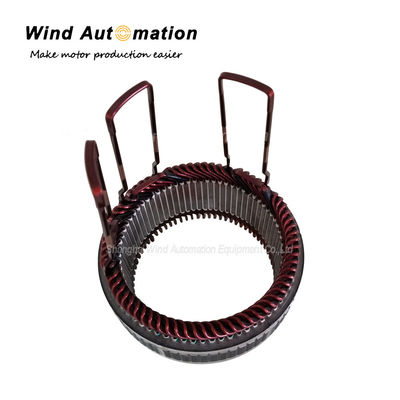

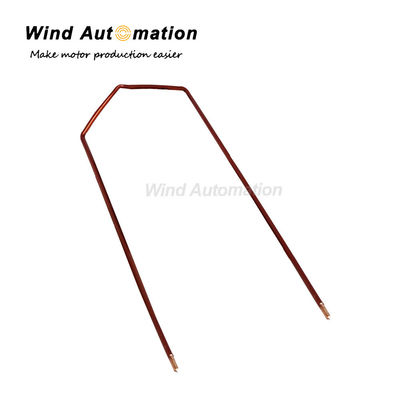

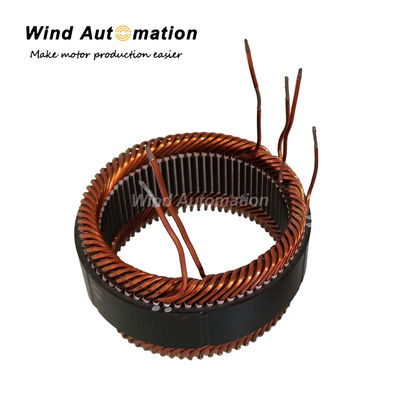

This machine is designed for manufacturing hairpins for alternator or generator stators.

(2)Specifications

Power supply	AC 380V 50Hz
Total power	2.2KW
Productivity	4s/pc
Wire feeding length	0~250mm
Weight	800KG
Dimension	2000x700x1800mm

(3) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
