Hairpin Coil Winding Hairpin Forming Machine for Bsg Motor

Large Image : Hairpin Coil Winding Hairpin Forming Machine for Bsg Motor

Product Details:

Contact Now

Hairpin Coil Winding Hairpin Forming Machine for Bsg Motor

Description

Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

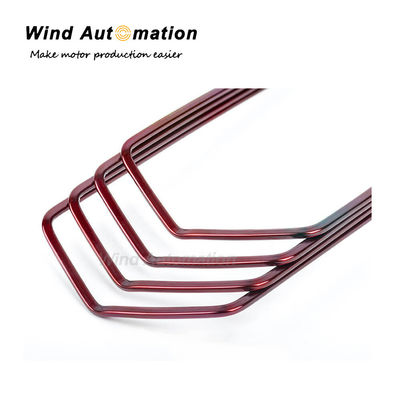

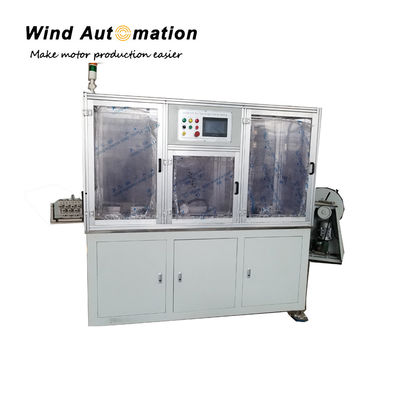

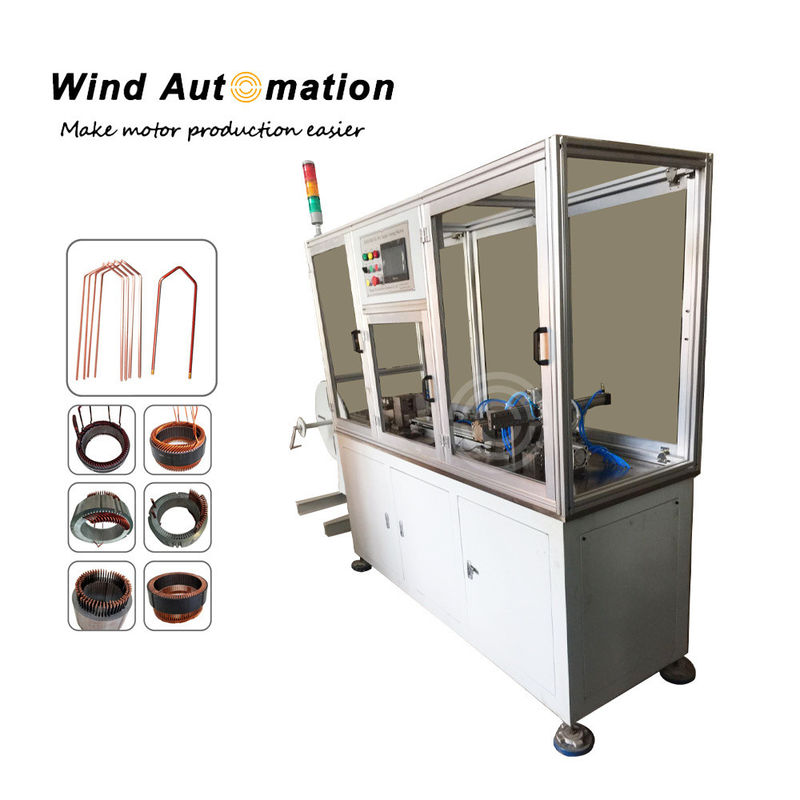

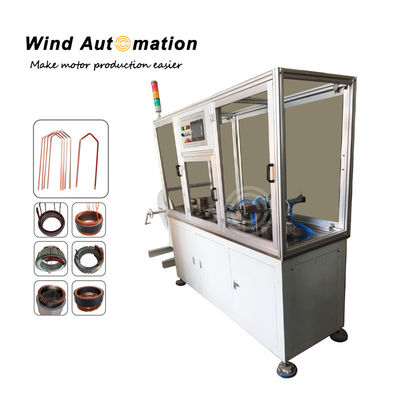

Hairpin Coil Winding Hairpin Forming Machine for BSG Motor

This hairpin forming machine is capable of productin conductor with customized size.The working productivity is about 4s/pc. The max wire feeding length is up to 250mm.

(1)Specifications

Power supply	AC 380V 50Hz
Total power	2.2KW
Productivity	4s/pc
Wire feeding length	0~250mm
Weight	800KG
Dimension	2000x700x1800mm

(2) Features
Capable of producing conductor with customized size
Mitsubishi PLC control, colorful touching screen
Automatic hairpin forming process
High efficiency, automation and productivity
High repeatability of the conductor's shape and dimensions

(3)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
Industrial vacuum cleaner
Dereeler
