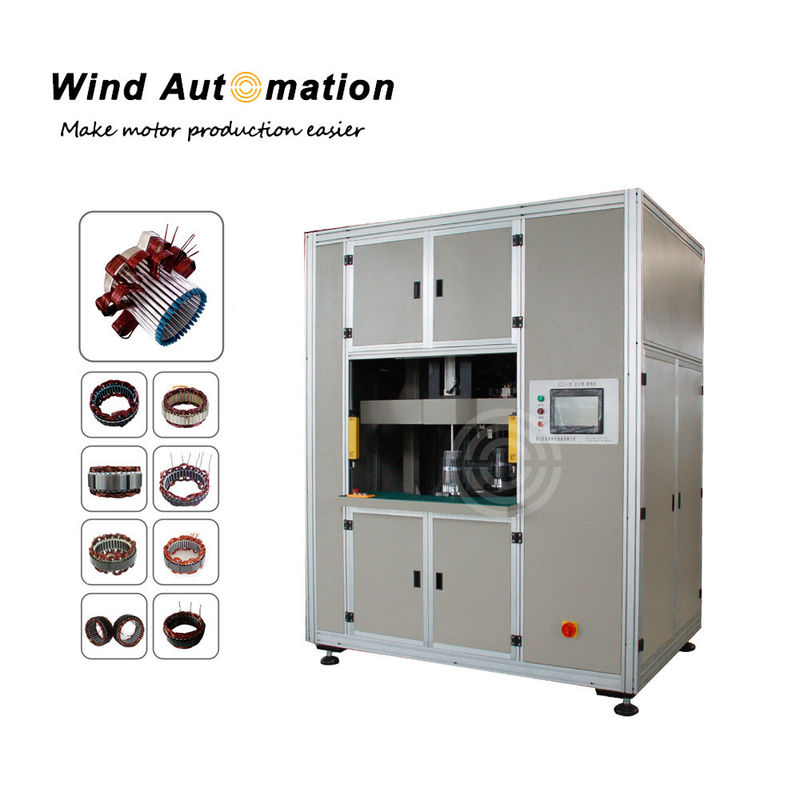

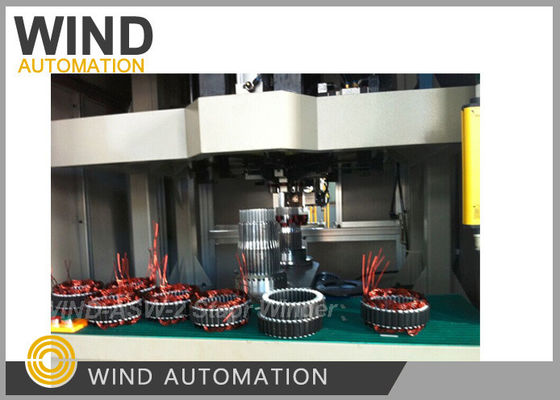

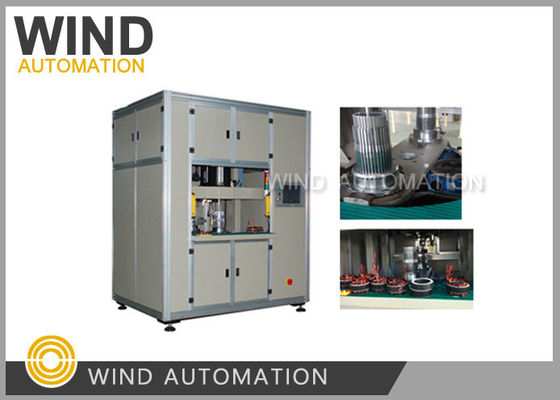

Fully Automatic AC Motor Stator Coil Winding Inserting Machine

Large Image : Fully Automatic AC Motor Stator Coil Winding Inserting Machine

Product Details:

Contact Now

Fully Automatic AC Motor Stator Coil Winding Inserting Machine

Description

Model NO.:	WIND-AGWI	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

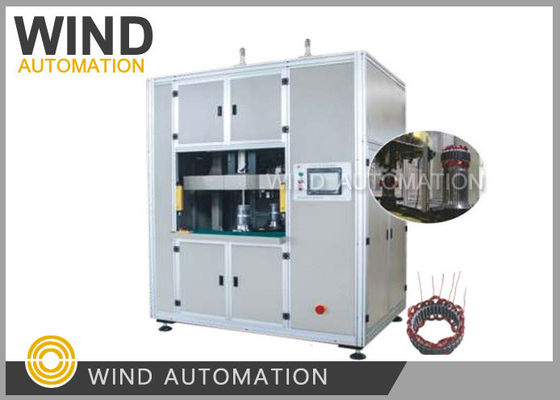

Generator Stator Coil Winding and Coil Inserting Machine

The machine can do automatically coil winding, coil inserting, wedge inserting by intergrating three machines into one machine. Winding and inserting process are all controlled by servo motor. Auto and jog mode are avaiable.

(1)Features

Two working stations

Easy loading and unloading
High automation and productivity
Fully programmable operation
Parameter adjustable according to different stators

Applied as a stand-alone machine or integrated into a production line

Servo motor control wire arraying and winding, pneumatically shaped to plum blossom,

double work stations automatic position changing,

servo automatic wire embedding, automatically put into slot cover,

one work station for wave shape winding and push into wire embedding mould,

another station for wire embedding and put into slot cover,

put paper inserted stator on the station manually, repeating operation,

PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method,

high automation and efficiency.

(2)Machine configuration

Power supply	AC 380V 50HZ
Air pressure	0.5~0.7 MPa
Total power	8KW
Winding speed	10~120r/min
Slots	36/48
Wire range	0.15~1.6mm
Stack length	20~130mm
Dimension	1800mmx1900mmx2500mm

(3)Machine Application

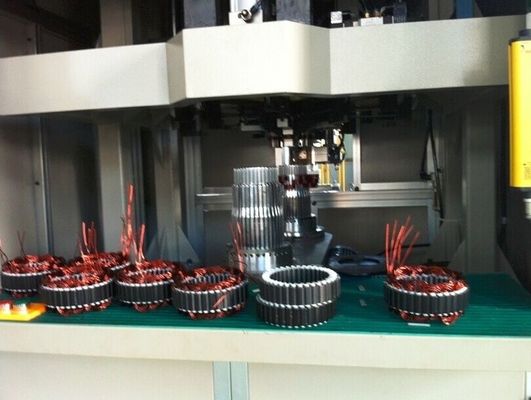

Automatic car automobile Generator alternator stator wave winding and wedge insertion WIND-AGWI is

suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding and putting

into winding transfer former automatically.

WIND-AGWI Fully automatic Double station automatic winding and insertion for alternator generator stator
