Generator Motor Frame 160 Stator Coil Inserting Machine

Large Image : Generator Motor Frame 160 Stator Coil Inserting Machine

Product Details:

Contact Now

Generator Motor Frame 160 Stator Coil Inserting Machine

Description

Model NO.:	WIND-QX-C	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

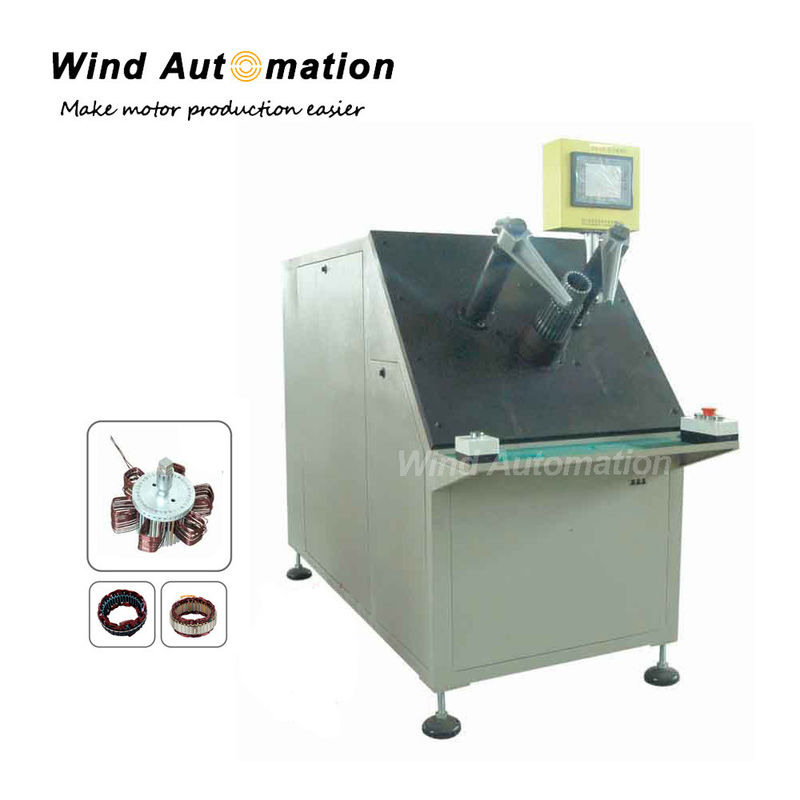

Generator Motor Stator Coil Inserting Machine

The coil inserting machine adopts automatic stepping wedge feeding and automatic wedge cutting mechanism. Wedge length can be adjusted as per requirement. Coil feeding is done by stepping motor. With torque senor and over loading automatic stop system, it can protect the mold needle from damage. All the switches on the machine is button switch.

(1)Features

Operating time is 45s

Operation height is 1050mm

Easy loading and unloading
Fast tooling change design within 20 min.
Fully programmable operation
Parameter adjustable according to different stators

Applied as a stand-alone machine or integrated into a production line

(2) Operation process

Put the wedge form onto wedge inserting tooling, press start button to start cutting and inserting wedge.
Put the wedge form onto coil inserting tooling, and then press start button, wedge will automatically be inserted into the tooling. The unload the wedge form.
Put the winding form onto the coil inserting tooling. Manually push the wire to the bottom. Then take out the winding form
Put positioner into coil inserting tooling.Then load stator(after slot paper inserted) into the coil inserting tooling.
Press start button, coil winding machine will automatically do coil and wedge inserting process. Unload stator after finishing the whole process.
