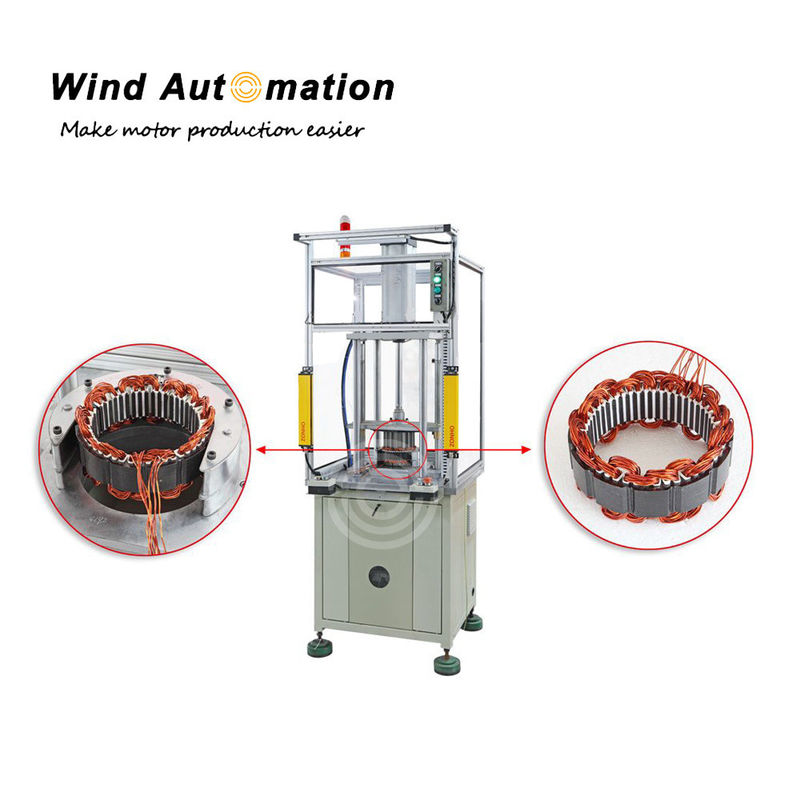

Generator Stator Coil Forming Machine

Large Image : Generator Stator Coil Forming Machine

Product Details:

Contact Now

Generator Stator Coil Forming Machine

Description

Model NO.:	WIND-CX-C	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Generator Stator Coil Forming Machine

This generator stator coil forming machine is used to forming stator coil shape. With a turnover mechanism and grating protection system, this machine deeply increases working efficiency while reduces working accidents.

(1) Specifications

Stator stack length	15mm-60mm
Max stator OD	120mm
Min Stator ID	60mm
Suitable wire material	copper/ aluminium wire
Input Power Source	380V/50Hz
Air source	0~7MPa
Power	3KW
Dimension	1000mm ×600mm × 1800mm

(2) Application
The stator coil forming machine is suitable for alternator, generator, three-phase motor and other industry motors.

(3) Features
Mitsubishi PLC program control and LCD display interface
Easy operation and tooling change
Suitable for multi-models production
Wide compatibility property
Adopts Turnover mechanism and grating protection system
All the process will be done by machine automatically except for loading and unloading
After forming, no deformation of stator or lamination, no damage of wire, wedge, or slot paper.
