Alternator Stator Impregnation Varnish Dripping Machine

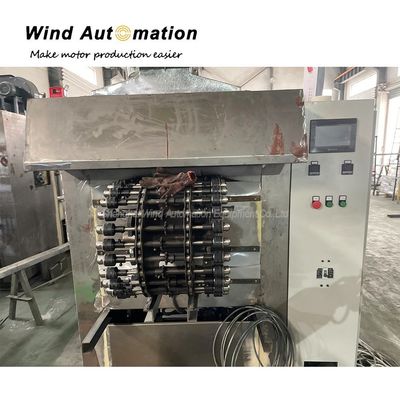

Large Image : Alternator Stator Impregnation Varnish Dripping Machine

Product Details:

Contact Now

Alternator Stator Impregnation Varnish Dripping Machine

Description

Model NO.:	WIND-ZCJ	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Alternator Stator Impregnation Varnish Dripping Machine

This Stator Impregnation Varnish Dripping Machine is designed for stator insulation treatment. With a big oven, this varnishing machine can achieve mass production.

(1) Specifications

Working position	32
Varnish depth	160mm
Bracket dimension	900mm*300mm
Power	75KW (electricity supply)
Power	15KW (diesel supply)
Working temperature	≤145 C, adjustable
Productivity	4000-5000pcs/20 hours
Dimension	8000mm2200mm2500mm (electricity supply)
Dimension	8000mm4200mm2800mm (diesel supply

(2) Application
This machine has a wide range of application, suitable for alternator stator, starter stator, new energy automobile car motor, induction motor ect.

(3) Features
Except for loading and unloading, the whole process of stator varnish dripping is completely automatic.
Mass production, high efficiency, high automation, Easy operation
Related parameter like heating time, pitch time, heating temperature can be set
Working position and pitch time can be customized.

(4)Information needed for inquiry

Stator drawing
Required production capacity
Required shift per day or per hour
