Generator Stator Testing Machine Hipot Testing Machine

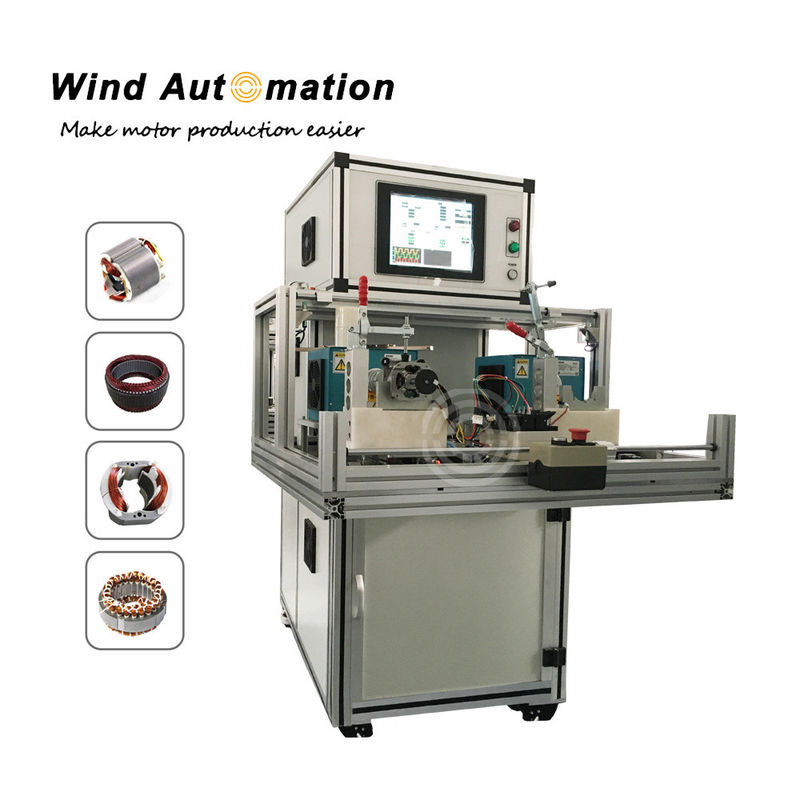

Large Image : Generator Stator Testing Machine Hipot Testing Machine

Product Details:

Contact Now

Generator Stator Testing Machine Hipot Testing Machine

Description

Model NO.:	WIND-DTS-100	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Generator Stator Testing Machine Hipot Testing Machine

(1)Feature
Both single and double working station applicable
QR/bar code applicable
Testing done by machine automatically
Quick and accurate test
Friendly HMI interface
Modular design of tooling
Work as stand-alone machine or integrated into a production line
All parameters can be catch automatically by one-key-operation

(2) Testing item

Test Items	Test Description	Accuracy
DC resistance	0.001 ~ 1000Ω (Automatic ambient temperature compensation)	≤±0.5% Full scale
Surge	100~3000Vpp	≤±2.5%
Isolation resistance	DC 500V/1000V	0.1-500MΩ ≤±2.5% Full scale
Hipot	AC 100-1000V	0-20mA ≤±2.5% Full scale
Speed	0~50000rpm	≤±1%
Voltage	AC 0-250V/0-400V	≤±1% Full scale
Current	0-5A/0-10A/0-20A	≤±1% Full scale
Power	0~3000W/0~10000W	≤±1.5% Full scale
Turn direction	According to magnetic field	CW/CCW
Noise	Frequency Range: 0~12000HZ Test Results: 30~120dB	≤±1.5dB
Vibration	Frequency Range: 0~12000HZ Test Results:0.1~100m/s2	≤±5%
QR/Bar code	Applicable
