Product Details:
|
| Model NO.: | WIND-ZR190 | Winding Service: | Engineers Avaiable To Service Overseas |
|---|---|---|---|
| Condition: | New | Customized Service: | Provided |
| Automatic: | Semi-Automatic | Transport Package: | Wooden Case |
| Specification: | Middle Size | Trademark: | Wind Automation |
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year | Package Size: | 1100.00cm * 800.00cm * 1500.00cm |
| Package Gross Weight: | 550.000kg |

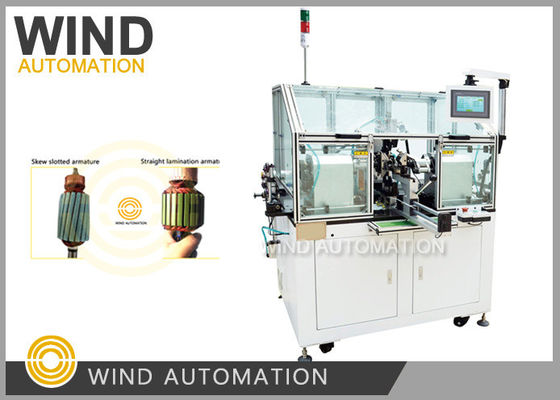

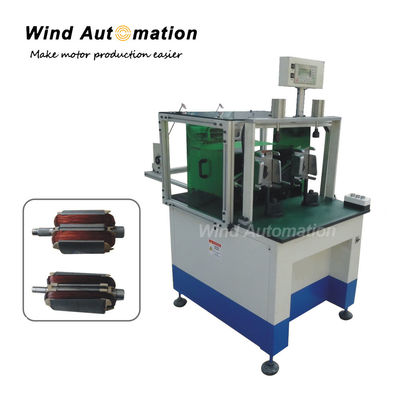

Adapting special purpose controller, this machine is suitable for winding various small alternator armature with copper wire or aluminum wire. Winding speed, arraying speed, indexing and clamping are well controlled. It could wind 2pcs armature simultaneously, after completing one side armature, the system will automatically turn around and start to wind another side. Winding tension is adjustable and arraying is even.
Specification
| Armature OD | Max 150mm |
| Stack height | 50~190mm |
| Tooling travel | Max 200mm |
| Slot number | Max 4 |
| Power supply | 220V 0.75KW |
| Weight | About 550KG |
| Dimension | 1100x800x1500mm |
