Cuffing Creasing Cutting Machine Slot Cell Forming
Insulation Forming Stator Slot Insulation

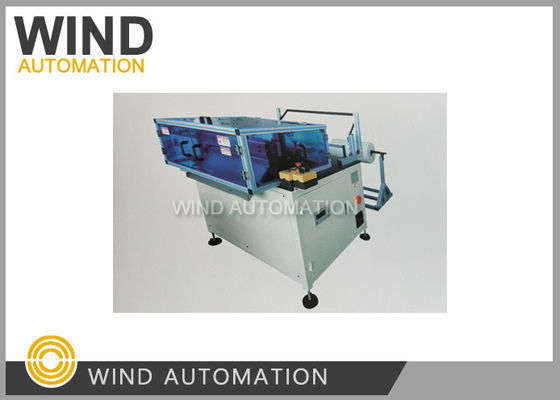

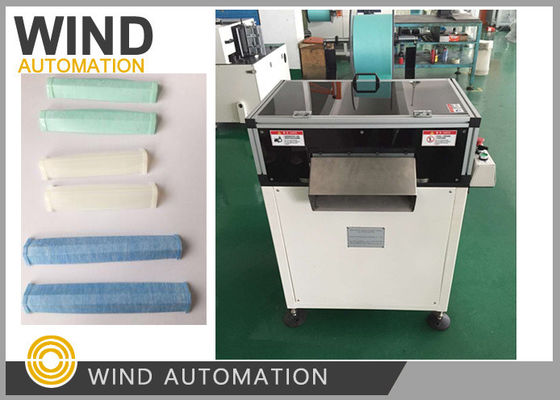

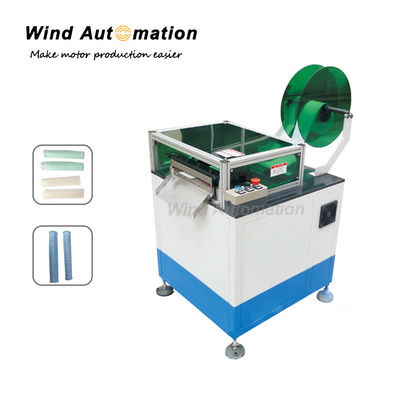

This kinds of paper forming machine is designed for stator to do manual paper inserting. Fold edge, paper feeding length and width is adjustable.
(1) Specification | Feeding length | 10mm-100mm |
| Insulation thickness | <0.35mm |
| Fold edge width | 2.5~4mm |
| Cutting width: | < 150mm |
| Input: | 220V/50Hz |
| Dimension | 500mm × 900mm × 1200mm |
| Weight: | ≈ 150kg |
(2) Application
This machine is suitable for manual motor manufacturer and manufacurer who has varies of motor models. (3) Ask and Answer
1. if the machine only cut the insulation or can also bend the insulations?

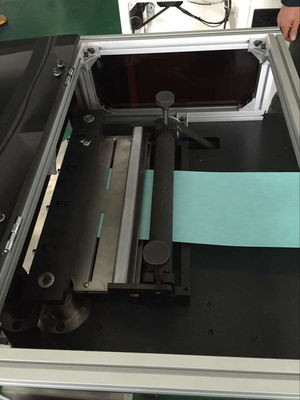

--- Yes, it can cut and also bend the insulations, the bend we call it edge folded
2. What are the maximum and minimum width of the insulation?
--- Width of the insulation Min 10mm, Max 150mm, other type can be customized
3. What is the thickness of the insulations?
--- 0.05mm to 0.35mm
4. What kind of material can bend and cut?
--- DMD,PMP and other Polyester film
Packing List details
Question and Answer
In the first stage, we are interested in Insulation paper forming and cutting machine
WIND-150-IF.
Could you send me the characteristics of the machine?
It is not clear if the machine only cut the insulation or can also bend the insulations.
--- Yes, it can cut and also bend the insulations, the bend we call it edge folded,
What are the maximum and minimum width of the insulation?
--- Width of the insulation Min 10mm, Max 150mm
What is the thickness of the insulations?
--- 0.05mm to 0.35mm
What kind of material can bend and cut?
--- DMD,PMP and other
We produce brushless permanent magnet motors.
--- Got it, please show us the armature and stator photo and how many piece you produce per day
