Product Details:
|
| Model NO.: | WIND-150-IF | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

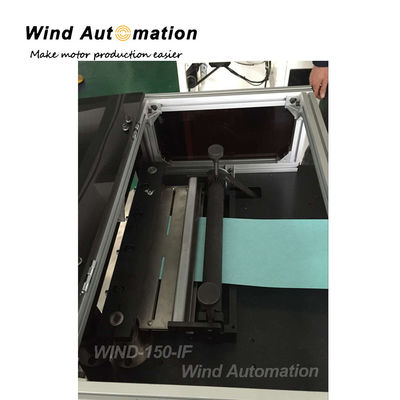

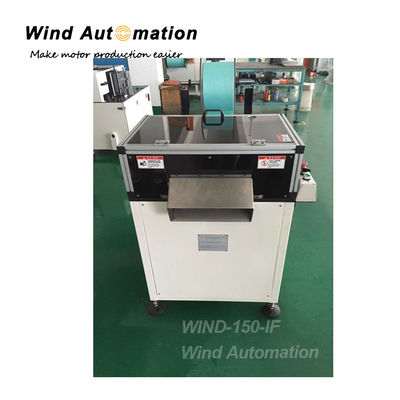

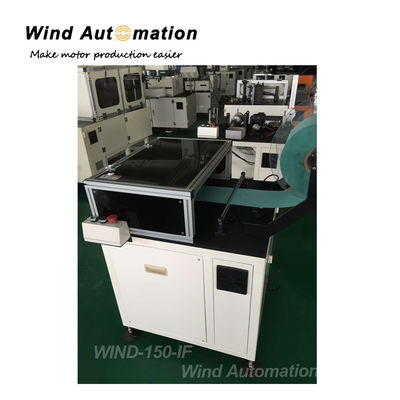

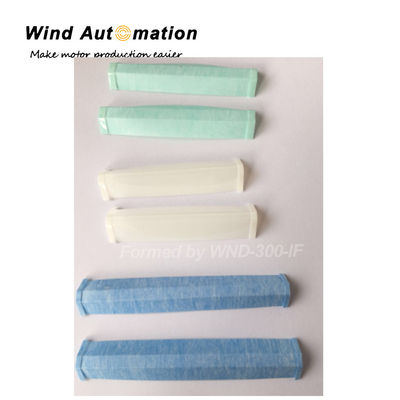

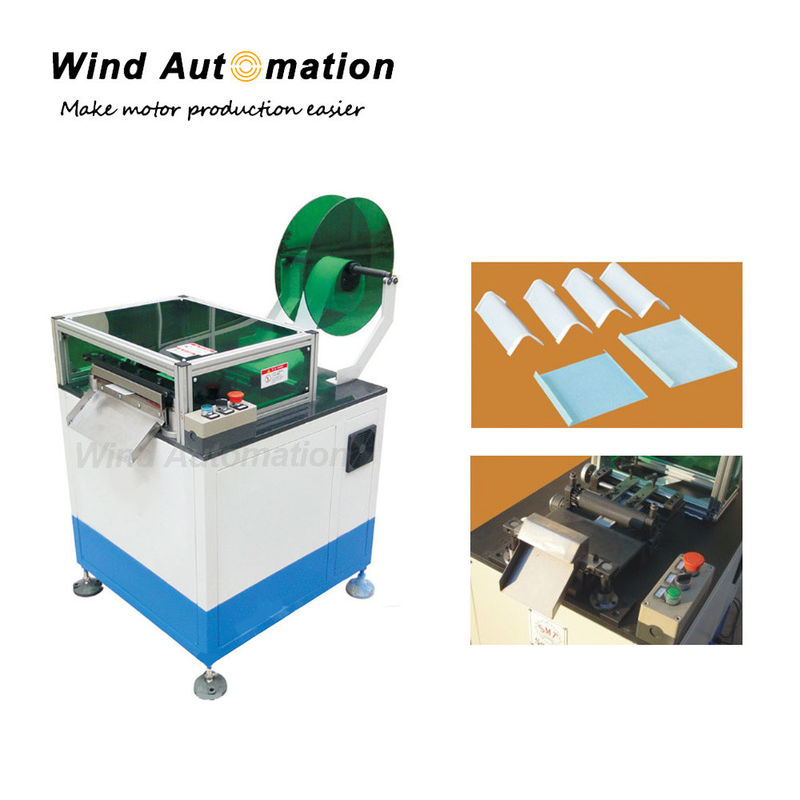

This machine is used to form and cut insulation paper for stator slot inserting.
The feeding length is related to slot size total area length,cutting width is usually stator stack length+ edge folded length *4 , for a motor frame size below 132, the edge folded usually is around 3.5mm.For example, if stack length is 80mm, the cutting width is around 80+14 = 94mm.
| Feeding length | 10~100mm |
| Cutting width | Max 150mm |
| Cutting thickness | Max 0.35mm |
| Cuff height | 2.5mm~4mm |
| Power supply | 220V 50/60HZ |
| Total power | 0.5KW |
| Weight | 150KG |
| Dimension | 500x900x1200mm |
