Micro Electric Motor Coil Winding Machine

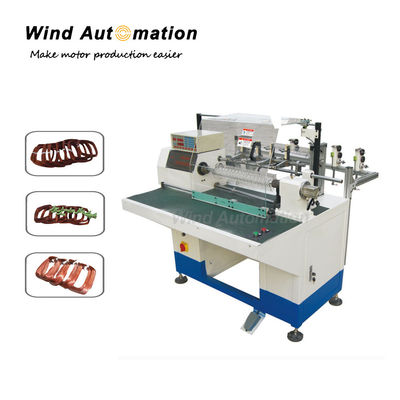

Large Image : Micro Electric Motor Coil Winding Machine

Product Details:

Contact Now

Micro Electric Motor Coil Winding Machine

Description

Model NO.:	WIND-160-CW	Automatic:	Semi-Automatic
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Micro Electric Motor Coil Winding Machine

The number of winding head of this coil winding machine can be customized. The max winding head is 6pcs.

(1) Specification

Wire diameter	0.1~1.0mm
Winding head	1~6 Customized
Winding fixture OD	Max 220mm
No-loading speed	Max 3200r/min
Air pressure	Min 0.4Mpa
Power supply	220V 0.75KW
Weight	About 550KG
Dimension	1550x1250x1300mm

(2) Application
Suitable for stator with multi-connected and multi layer winding. Apply to all kinds of micro motors such as AC motor, pump motor, air conditioner motor, three phase machine, etc.

(3) Feature
Suitable for multi-connect and multi-layer winding
Customized number of winding head within 6
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling
Memory storage of parameters for 999 stator types
Stator coil winding of most popular induction motor

Micro Electric Motor Coil Winding Machine
