Product Details:
|
| Model NO.: | WIND-350-CW | Automatic: | Semi-Automatic |
|---|---|---|---|
| Transport Package: | Wooden Case | Specification: | Middle Size |
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

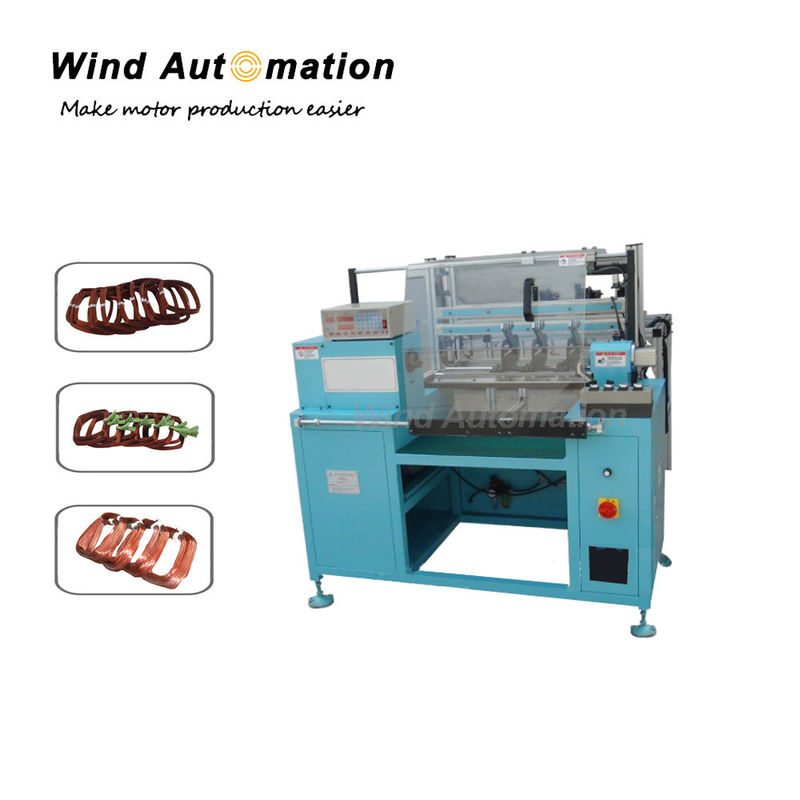

This stator coil winding machine is suitable for stator with wire diamter within 0.2 to 1.5mm. It can synchronously wind 1-3 coils.
(1) Specification| Wire diameter | 0.2~1.5mm |
| Winding head | 1~3 Customized |
| Wind fixture OD | Max 350mm |
| Winding speed | Max 2500r/min |
| Air pressure | Min 0.4Mpa |
| Power supply | 220V 1.5KW |
| Weight | About 670KG |
| Dimension | 1550x1250x1400mm |
