Product Details:
|
| Model NO.: | WIND-1200-CW | Automatic: | Semi-Automatic |
|---|---|---|---|
| Transport Package: | Wooden Case | Specification: | Middle Size |
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

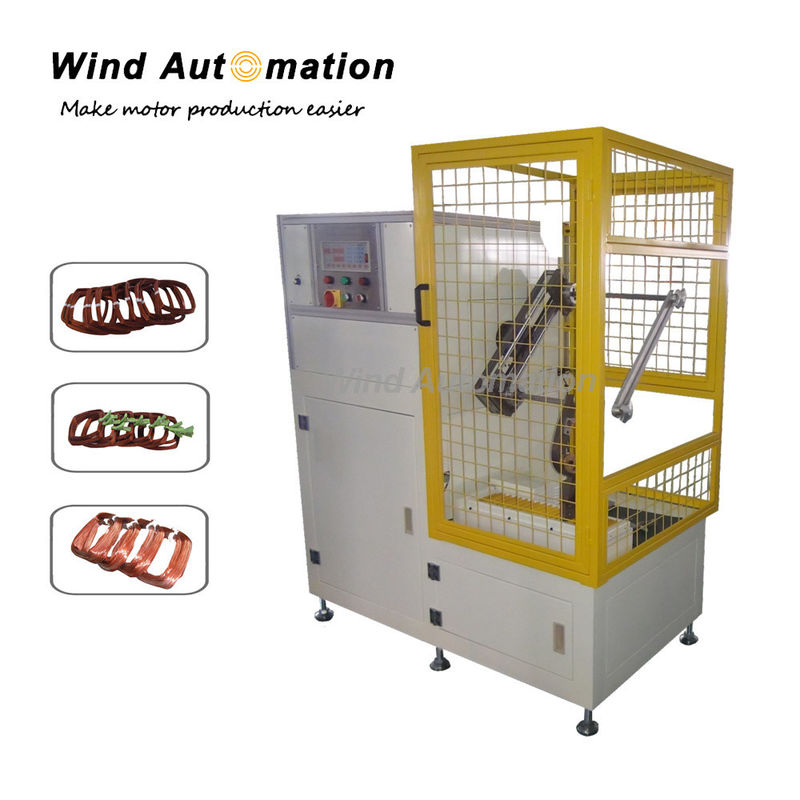

This type of machine is suitable for big power stator to do coil winding. It will not wind to stator slot, but a winding fixture. After winding, coils should be unloaded manually.
(1) Specification| Wire diameter | 0.4~1.5mm |
| Winding head | 1 |
| Stack length | Max 70mm |
| Winding fixture OD | Max 1200mm |
| Air pressure | Min 0.4Mpa |
| Power supply | 380V 5.5KW |
| Weight | About 1150KG |
| Dimension | 2300x2200x2000mm |
