Product Details:
|
| Model NO.: | WIND-1200-CW | Automatic: | Semi-Automatic |
|---|---|---|---|
| Transport Package: | Wooden Case | Specification: | Middle Size |
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

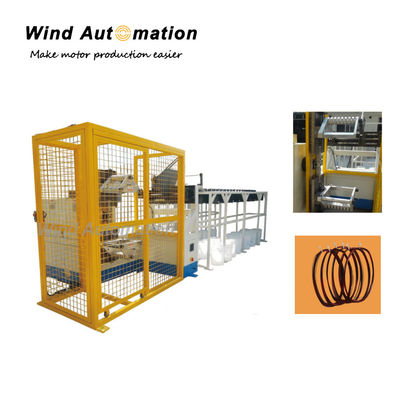

This type of machine can do winding, arraying and cutting automatically. It is capable of producing various dimension coils through tooling adjustment.
(1) Application

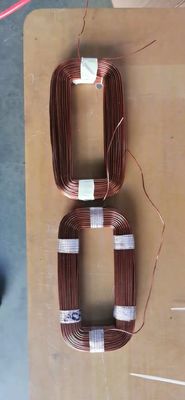

Suitable for winding chained and concentric coils. Apply to large or big stators with big power, such as deep well pump motor or other big power stators.
| Wire diameter | 0.4~1.5mm |
| Winding head | 1 |
| Stack length | Max 70mm |
| Winding fixture OD | Max 1200mm |
| Air pressure | Min 0.4Mpa |
| Power supply | 380V 5.5KW |
| Weight | About 1150KG |
| Dimension | 2300x2200x2000mm |
