Product Details:
|
| Model NO.: | WIND-90-CWI | Trademark: | Wind Automation |
|---|---|---|---|
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year |

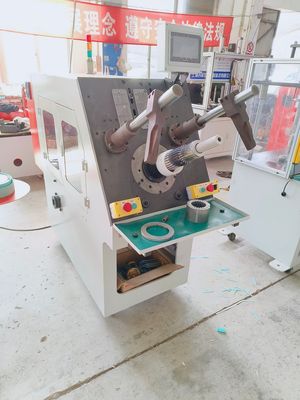

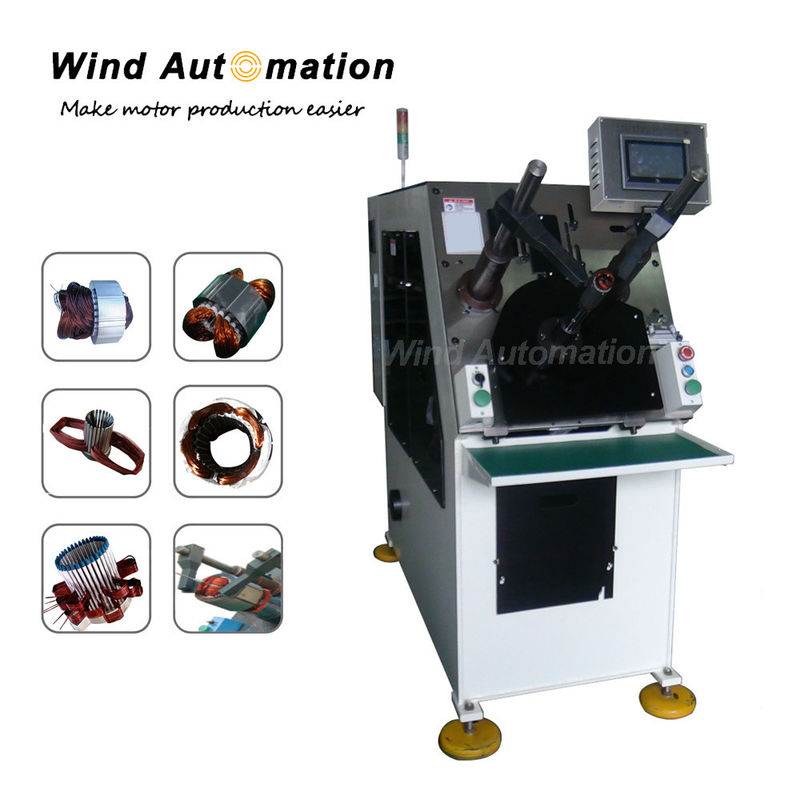

This machine can insert stator coils and wedge automatically. Slot number, coil pushing speed and wedge length are programmable on touch screen. Machine has a wide application, suitable for various kinds of induction motors.
(1) Feature
Wide application
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required
(2) Application
This type of machine is suitable for various types of AC motor, induction motor stators.
(3) Specification
| Stack length | Max 120mm |
| Stator ID | 20~100mm |
| Stator OD | Max 160mm |
| Tooling stroke | Max 70mm |
| Suitable wire material | Copper/Aluminium wire |
| Slot number | 8~48slots |
| Power supply | 380V 50/60HZ |
| Weight | 850KG |
| Dimension | 1850x650x1700mm |
