Product Details:
|
| Model NO.: | WIND-TIG | Transport Package: | Wooden Case |
|---|---|---|---|
| Specification: | Middle Size | Trademark: | Wind Automation |
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year |
| Power Supply | AC 380V 50Hz |
| Air Pressure Supply | ≥0.5MPa |
| Productivity | 2s/slot |
| Indexing method | Servo |
| Weight | 800KG |
| Dimension | 1400x750x1950mm |

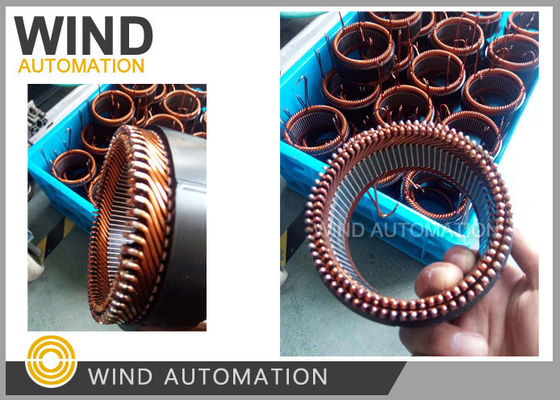

Comparing resistance welding, below are the reason why TIG welding are widely used in Hybrid car stator
1. The three conductor is not easy to clamp if use resistance welding
2. TIG welding is a kind of melting welding which have stronger connection of copper wire and copper wire,
3. Welding contacting resistance of TIG welding is smaller than resistance welding
4. All the three conductor's position are towards up in same way, it is easy to use TIG welding method,
Related pure electrical car also use TIG welding method
