Product Details:
|
| Model NO.: | WIND-TIG | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

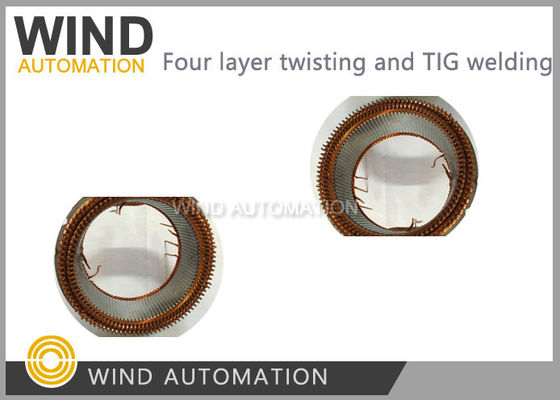

This machine has a special fixture which can be used to isolate the second layer conductor wire, During first layer conductor wire welding, machine will not weld the second layer wire. This can also be applied to the cases of 4 layers and 6 layers conductor.
Why TIG welding are widely used
1. The three conductor is not easy to clamp if use resistance welding
2. TIG welding is a kind of melting welding which have stronger connection of copper wire and copper wire,
3. Welding contacting resistance of TIG welding is smaller than resistance welding
4. All the three conductor's position are towards up in same way, it is easy to use TIG welding method. Related pure electrical car also use TIG welding method
| Power Supply | AC 380V 50Hz |
| Air Pressure Supply | ≥0.5MPa |
| Productivity | 2s/slot |
| Indexing method | Servo |
| Weight | 600KG |
| Dimension | 800x800x1500mm |
